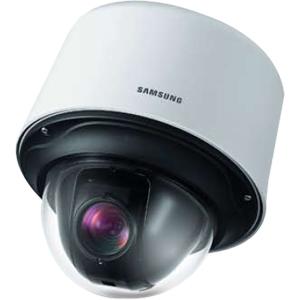

The SCP-3430H PTZ dome camera is Samsungs highest performance outdoor PTZ dome camera. It features a 43x auto focus zoom lens (3.2-138.5mm), 360 degree continuous rotation, high-speed pan and tilt operations at 600 degrees per second, 512 presets and 128x Wide Dynamic Range (WDR).
Powered by Samsung Techwins A1 chipset, the SCP-3430 camera offers 600TV lines colour resolution and a long list of features including true Day / Night operation with ICR, privacy masking, frame integration, and much more. The H version has an IP66 housing with heaters that give it a temperature range of -58F to 122F.
Specification
1/4 Ex-view HAD PS CCD
600 TVL resolution
43x optical zoom, 16x digital zoom
3.2-138.5mm vari-focal lens
360o endless pan, -6o - 168degress tilt
600o/sec preset pan & tilt speed
2D + 3D noise filter
Digital image stabilization
Back light compensation
Extended dynamic range
Automatic gain control
12 zone programmable privacy masking
RS-485/422, coaxial interface
Multiple protocol: Samsung-T/E, Pelco-D/P, Bosch, Honeywell, Panasonic, GE, AD
IP66 weather and dust resistance
24v AC
